Nozzles
Select a category
Rotary
| Thumbnail | Model | Max PSI | Inlet (in) | Nozzle Size | Max Temp | Material |
|---|---|---|---|---|---|---|

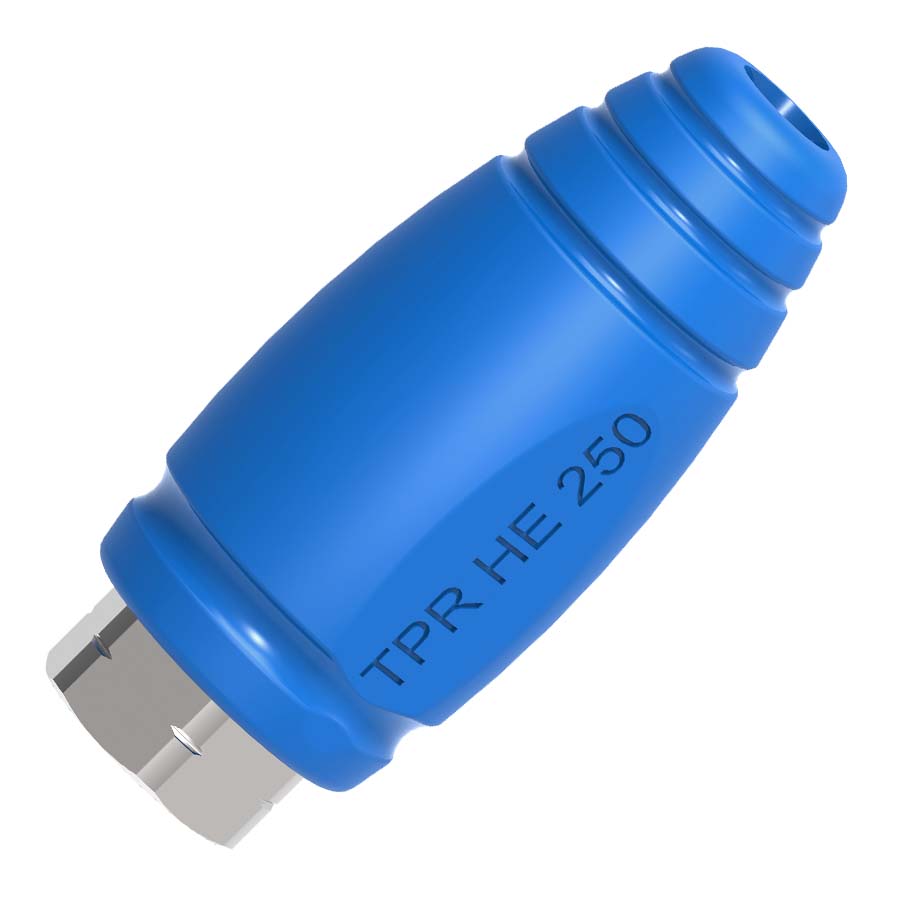

 | TPRHE250-12 | 3600 | 1/2” NPT F | 12 | 194° F | stainless steel |
| TPRHE250-08 | 3600 | 1/2” NPT F | 8 | 194° F | stainless steel |
| TPRHE250-10 | 3600 | 1/2” NPT F | 10 | 194° F | stainless steel |

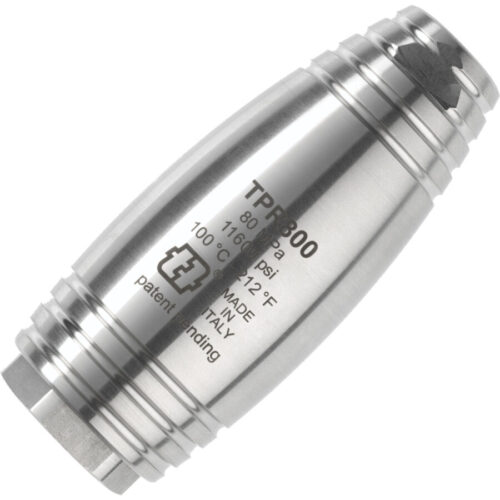

 | TPR800-07 | 11600 | 1/4” F | 7 | 212° F | stainless steel |
| TPR800-075 | 11600 | 1/4” F | 7.5 | 212° F | stainless steel |
| TPR800-06 | 11600 | 1/4” F | 6 | 212° F | stainless steel |
| TPR800-065 | 11600 | 1/4” F | 6.5 | 212° F | stainless steel |
| TPR800-05 | 11600 | 1/4” F | 5 | 212° F | stainless steel |
| TPR800-055 | 11600 | 1/4” F | 5.5 | 212° F | stainless steel |
| TPR800-045 | 11600 | 1/4” F | 4.5 | 212° F | stainless steel |
| TPR800-035 | 11600 | 1/4” F | 3.5 | 212° F | stainless steel |
| TPR800-04 | 11600 | 1/4” F | 4 | 212° F | stainless steel |
| TPR800-025 | 11600 | 1/4” F | 2.5 | 212° F | stainless steel |
| TPR800-03 | 11600 | 1/4” F | 3 | 212° F | stainless steel |
 | TPR600-07 | 8700 | 1/4” F | 7 | 212° F | stainless steel |
| TPR600-075 | 8700 | 1/4” F | 7.5 | 212° F | stainless steel |
| TPR800-02 | 11600 | 1/4” F | 2 | 212° F | stainless steel |
| TPR600-065 | 8700 | 1/4” F | 6.5 | 212° F | stainless steel |
| TPR600-055 | 8700 | 1/4” F | 5.5 | 212° F | stainless steel |
| TPR600-06 | 8700 | 1/4” F | 6 | 212° F | stainless steel |
| TPR600-045 | 8700 | 1/4” F | 4.5 | 212° F | stainless steel |
| TPR600-05 | 8700 | 1/4” F | 5 | 212° F | stainless steel |
| TPR600-035 | 8700 | 1/4” F | 3.5 | 212° F | stainless steel |
| TPR600-04 | 8700 | 1/4” F | 4 | 212° F | stainless steel |
| TPR600-025 | 8700 | 1/4” F | 2.5 | 212° F | stainless steel |
| TPR600-03 | 8700 | 1/4” F | 3 | 212° F | stainless steel |

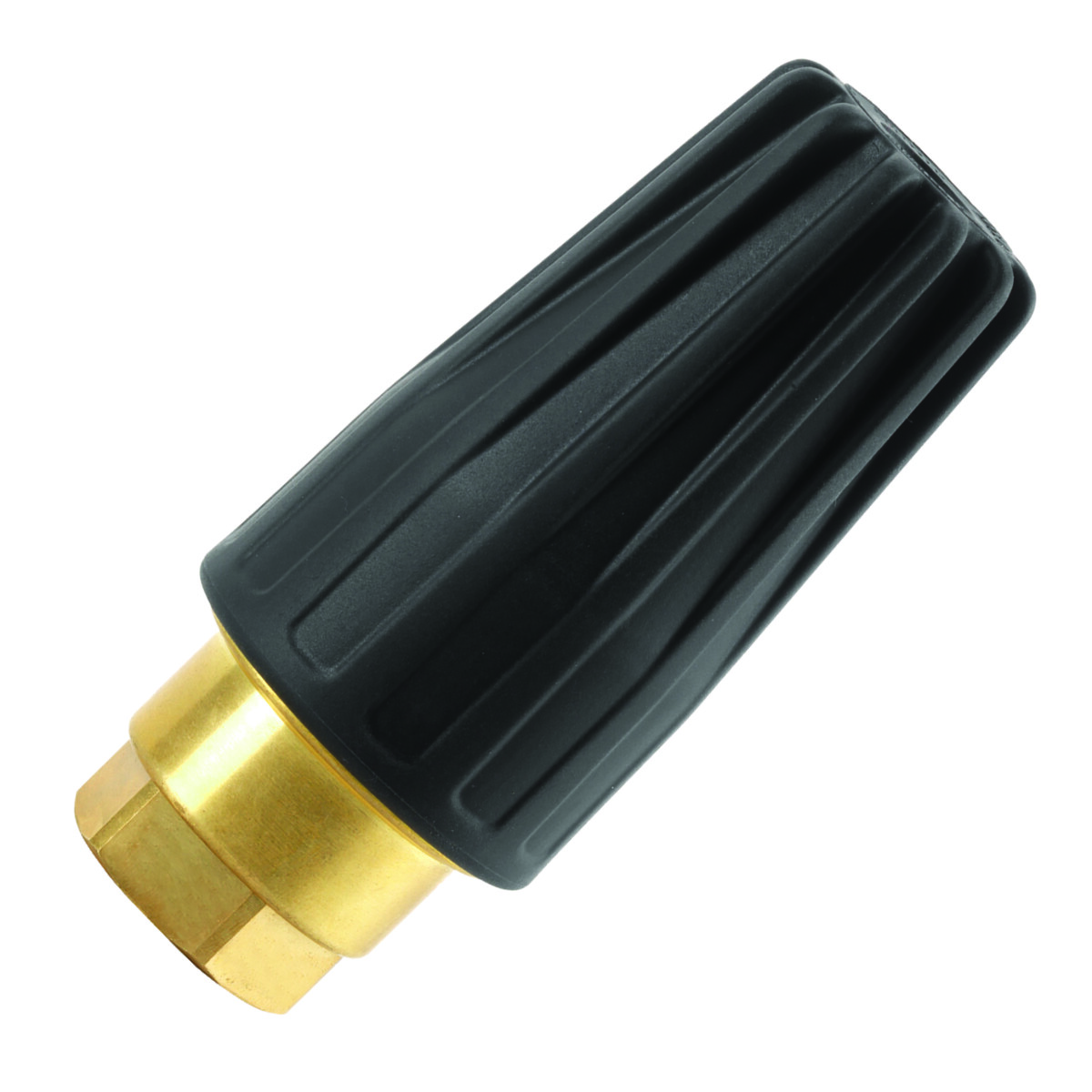

 | TPR400-12-1/2 | 5800 | 1/2” F NPT | 12 | 212° F | Brass |
| TPR600-02 | 8700 | 1/4” F | 2 | 212° F | stainless steel |
| TPR400-10-1/2 | 5800 | 1/2” F NPT | 10 | 212° F | Brass |
| TPR400-12 | 5800 | 1/4” F | 12 | 212° F | Brass |
| TPR400-08 | 5,800 | 5800 | 1/4” F | 8 | 212° F | Brass |
| TPR400-10 | 5800 | 1/4” F | 10 | 212° F | Brass |
| TPR400-07 | 5,800 | 1/4” F | 7 | 212° F | Brass |
| TPR400-075 | 5,800 | 1/4” F | 7.5 | 212° F | Brass |
| TPR400-065 | 5,800 | 1/4” F | 6.5 | 212° F | Brass |
| TPR400-055 | 5,800 | 1/4” F | 5.5 | 212° F | Brass |
| TPR400-06 | 5,800 | 1/4” F | 6 | 212° F | Brass |
| TPR400-04 | 5,800 | 1/4” F | 4 | 212° F | Brass |
| TPR400-045 | 5,800 | 1/4” F | 4.5 | 212° F | Brass |
| TPR400-05 | 5,800 | 1/4” F | 5 | 212° F | Brass |
| TPR400-035 | 5,800 | 1/4” F | 3.5 | 212° F | Brass |
| TPR400-025 | 5,800 | 1/4” F | 2.5 | 212° F | Brass |
| TPR400-03 | 5,800 | 1/4” F | 3 | 212° F | Brass |

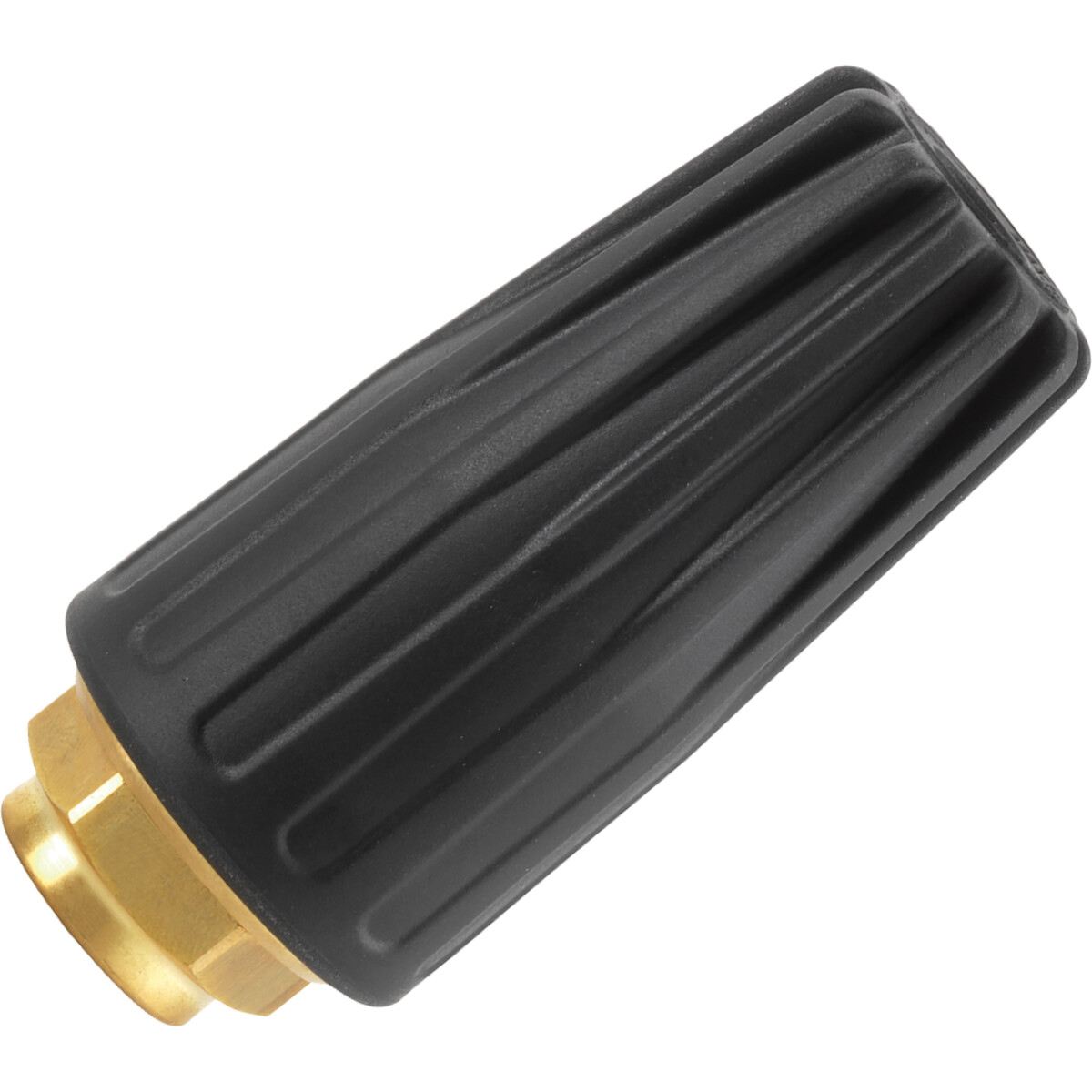

 | TPR350-08 | 5,075 | 1/4” F | 8 | 212° F | Brass |
| TPR400-02 | 5,800 | 1/4” F | 2 | 212° F | Brass |
| TPR350-07 | 5,075 | 1/4” F | 7 | 212° F | Brass |
| TPR350-075 | 5,075 | 1/4” F | 7.5 | 212° F | Brass |
| TPR350-06 | 5,075 | 1/4” F | 6 | 212° F | Brass |
| TPR350-065 | 5,075 | 1/4” F | 6.5 | 212° F | Brass |
| TPR350-05 | 5,075 | 1/4” F | 5 | 212° F | Brass |
| TPR350-055 | 5,075 | 1/4” F | 5.5 | 212° F | Brass |
| TPR350-04 | 5,075 | 1/4” F | 4 | 212° F | Brass |
| TPR350-045 | 5,075 | 1/4” F | 4.5 | 212° F | Brass |
| TPR350-03 | 5,075 | 1/4” F | 3 | 212° F | Brass |
| TPR350-035 | 5,075 | 1/4” F | 3.5 | 212° F | Brass |
| TPR350-025 | 5,075 | 1/4” F | 2.5 | 212° F | Brass |

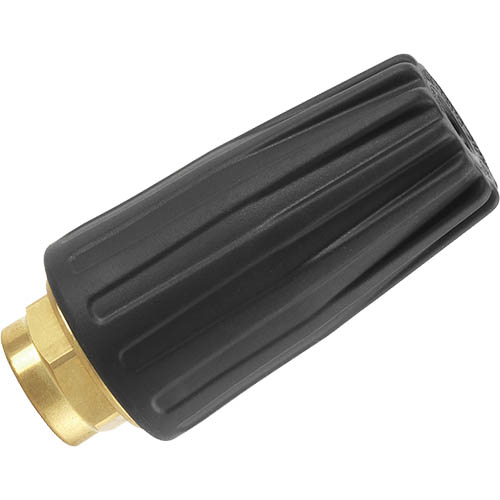

 | TPR255-075 | 3,700 | 1/4” F | 7.5 | 212° F | Brass |
| TPR255-08 | 3,700 | 1/4” F | 8 | 212° F | Brass |
| TPR350-02 | 5,075 | 1/4” F | 2 | 212° F | Brass |
| TPR255-07 | 3,700 | 1/4” F | 7 | 212° F | Brass |
| TPR255-06 | 3,700 | 1/4” F | 6 | 212° F | Brass |
| TPR255-065 | 3,700 | 1/4” F | 6.5 | 212° F | Brass |
| TPR255-05 | 3,700 | 1/4” F | 5 | 212° F | Brass |
| TPR255-055 | 3,700 | 1/4” F | 5.5 | 212° F | Brass |
| TPR255-035 | 3700 | 1/4" F | 3.5 | 212° F | Brass |
| TPR255-04 | 3,700 | 1/4” F | 4 | 212° F | Brass |
| TPR255-045 | 3,700 | 1/4” F | 4.5 | 212° F | Brass |
| TPR255-025 | 3700 | 1/4" F | 2.5 | 212° F | Brass |
| TPR255-03 | 3700 | 1/4" F | 3 | 212° F | Brass |
| TPR255-02 | 3700 | 1/4" F | 2 | 212° F | Brass |
 | ROTOJET400-055 | 5,800 | 1/4” F | 5.5 | 210° F | Brass |
| ROTOJET400-065 | 5,800 | 1/4” F | 6.5 | 210° F | Brass |
| ROTOJET400-07 | 5,800 | 1/4” F | 7 | 210° F | Brass |
| ROTOJET400-035 | 5,800 | 1/4” F | 3.5 | 210° F | Brass |
| ROTOJET400-020 | 5,800 | 1/4” F | 2 | 210° F | Brass |
| ROTOJET400-03 | 5,800 | 1/4” F | 3 | 210° F | Brass |
 | AL-TPR35-50 | 5075 | 1/4" F | 6 | 195° F | |
| AL-TPR35-60 | 5075 | 1/4" F | 6.5 | 195° F | |
| AL-TPR35-70 | 5075 | 1/4" F | 7 | 195° F | |
 | AL-TPR25-70 | 3675 | 1/4" F | 7 | 195° F | |
| AL-TPR35-40 | 5075 | 1/4" F | 5 | 195° F | |
| AL-TPR25-50 | 3675 | 1/4" F | 6 | 195° F | |
| AL-TPR25-60 | 3675 | 1/4" F | 6.5 | 195° F | |
 | AL-TPR20-50 | 2900 | 1/4" F | 6 | 105° F | |
| AL-TPR25-30 | 3675 | 1/4" F | 4 | 195° F | |
| AL-TPR25-40 | 3675 | 1/4" F | 5 | 195° F | |
| AL-TPR20-30 | 2900 | 1/4" F | 4 | 105° F | |
| AL-TPR20-40 | 2900 | 1/4" F | 5 | 105° F | |
 | AL-TTR16-30 | 2400 | 1/4" F | 3.6 | 105° F | |
| AL-TTR16-35 | 2400 | 1/4" F | 3.7 | 105° F | |
| AL-TTR16-40 | 2400 | 1/4" F | 4 | 105° F | |
| AL-TTR16-15 | 2400 | 1/4" F | 2.8 | 105° F | |
| AL-TTR16-20 | 2400 | 1/4" F | 3 | 105° F | |
| AL-TTR16-25 | 2400 | 1/4" F | 3.3 | 105° F | |
 | TPL046 | 4000 | 1/4” F | 1.3, 4.6 | 194° F | Brass |
| TPL052 | 4000 | 1/4” F | 1.4, 5.2 | 194° F | |
| TPL039 | 4000 | 1/4” F | 1.2, 3.9 | 194° F | Brass |
 | AR50729 | 7000 | 1/4” F | 6 | 194° F | Brass |
| TPL027 | 4000 | 1/4” F | 1, 2.7 | 194° F | Brass |
| TPL033 | 4000 | 1/4” F | 1.1, 3.3 | 194° F | Brass |
 | ROTOJET500-075 | 7250 | 1/4” F | 7.5 | 210° F | stainless steel |
| ROTOJET500-08 | 7250 | 1/4” F | 8 | 210° F | stainless steel |
| ROTOJET500-09 | 7250 | 1/4” F | 9 | 210° F | |
| ROTOJET500-06 | 7250 | 1/4” F | 6 | 210° F | stainless steel |
| ROTOJET500-065 | 7250 | 1/4” F | 6.5 | 210° F | stainless steel |
| ROTOJET500-07 | 7250 | 1/4” F | 7 | 210° F | stainless steel |
| ROTOJET500-045 | 7250 | 1/4” F | 4.5 | 210° F | stainless steel |
| ROTOJET500-05 | 7250 | 1/4” F | 5 | 210° F | stainless steel |
| ROTOJET500-055 | 7250 | 1/4” F | 5.5 | 210° F | stainless steel |
| ROTOJET500-03 | 7250 | 1/4” F | 3 | 210° F | stainless steel |
| ROTOJET500-04 | 7250 | 1/4” F | 4 | 210° F | stainless steel |
 | 5411 | 5000 | 1/4” F | 194° F | ||
| 5412 | 5000 | 1/4” F | 194° F | ||
| 5413 | 5000 | 1/4” F | 194° F | stainless steel | |
| 5404 | 4000 | 1/4” F | 194° F | ||
| 5410 | 5000 | 1/4” F | 194° F | ||
| ROTOJET400-15 | 5800 | 1/4” F | 15 | 210° F | Brass |
| 5402 | 4000 | 1/4” F | 194° F | ||
| 5403 | 4000 | 1/4” F | 194° F | ||
| ROTOJET400-09 | 5800 | 1/4” F | 9 | 210° F | Brass |
| ROTOJET400-10 | 5800 | 1/4” F | 10 | 210° F | Brass |
| ROTOJET400-12 | 5800 | 1/4” F | 12 | 210° F | Brass |
| ROTOJET400-02 | 5800 | 1/4” F | 2 | 210° F | Brass |
| ROTOJET400-045 | 5800 | 1/4” F | 4.5 | 210° F | Brass |
| ROTOJET400-075 | 5800 | 1/4” F | 7.5 | 210° F | Brass |
 | ROTOJET310-045 | 4500 | 1/4” F | 4.5 | 210° F | Brass |
| ROTOJET310-055 | 4500 | 1/4” F | 5.5 | 210° F | Brass |
| ROTOJET310-06 | 4500 | 1/4” F | 6 | 210° F | Brass |
 | ROTOJET255-07 | 3700 | 1/4” F | 7 | 210° F | Brass |
| ROTOJET310-035 | 4500 | 1/4” F | 3.5 | 210° F | Brass |
| ROTOJET310-04 | 4500 | 1/4” F | 4 | 210° F | Brass |
| ROTOJET255-06 | 3700 | 1/4” F | 6 | 210° F | Brass |
| ROTOJET255-065 | 3700 | 1/4” F | 6.5 | 210° F | Brass |
| ROTOJET255-05 | 3700 | 1/4” F | 5 | 210° F | Brass |
| ROTOJET255-055 | 3700 | 1/4” F | 5.5 | 210° F | Brass |
| ROTOJET255-035 | 3700 | 1/4” F | 3.5 | 210° F | Brass |
| ROTOJET255-04 | 3700 | 1/4” F | 4 | 210° F | Brass |
| ROTOJET255-02 | 3, 3, 700, 700 | 1/4” F | 2 | 210° F | Brass |
| ROTOJET255-025 | 3700 | 1/4” F | 2.5 | 210° F | Brass |
| ROTOJET255-03 | 3700 | 1/4” F | 3 | 210° F | Brass |
 | IDROJET2-1.45 | 3600 | 1/4" F | 1.45, 5.5 | 140° F | |
| IDROJET2-1.60 | 3600 | 1/4" F | 1.6, 6 | 140° F | Brass |
| IDROJET2-1.25 | 3600 | 1/4" F | 1.25, 4.3 | 140° F | |
| IDROJET2-1.3 | 3600 | 1/4" F | 1.3, 4.5 | 140° F | |
| IDROJET2-1.35 | 3600 | 1/4" F | 1.35, 5 | 140° F | |
| IDROJET2-1.15 | 3600 | 1/4" F | 1.15, 3.7 | 140° F | |
| IDROJET2-1.20 | 3600 | 1/4" F | 1.2, 4 | 140° F | |
| ROTOJET310-05 | 4500 | 1/4” F | 5 | 210° F | |
| ROTOJET310-03 | 4500 | 1/4” F | 3 | 210° F | Brass |
| ROTOJET400-20 | 5800 | 1/4” F | 20 | 210° F | Brass |
| ROTOJET500-035 | 7250 | 1/4” F | 3.5 | 210° F | Brass |
| AR40395 | 7000 | 1/4” F | 4 | 194° F | stainless steel |
| AL-TPR35-30 | 5075 | 1/4" F | 4 | 195° F | |
| ROTOJET255-045 | 3700 | 1/4” F | 4.5 | 210° F |
