Valves
Select a category
All Valves
| Thumbnail | Model | Max GPM | Max PSI | Inlet (in) | Outlet (in) | Max Temp | Material |
|---|---|---|---|---|---|---|---|
 | VS100-140-SS Safety Valve | 5.3 | 2300 | 1/2” F-G | |||

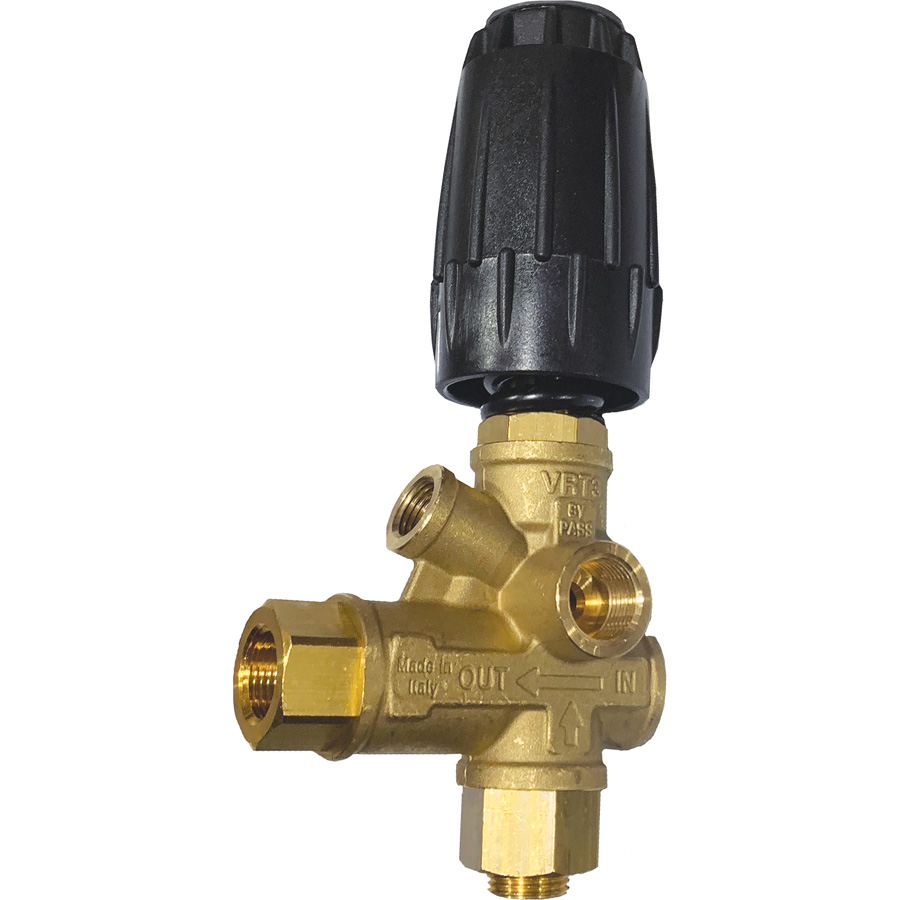

 | VRT3R-310 | 10.5 | 4,500 | 2 x 3/8” F | 3/8” F | 194° F | bass |
 | VRT3R-250 | 10.5 | 3,650 | 2 x 3/8” F | 3/8” F | 194° F | Brass |
 | VRP26-310-SS Regulator | ||||||
 | VLP8-12 | 2.1-3.2 | 4,060 | 1/4” M | Ø 16mm | 230° F | Brass |
| VLP17.21 | 4.5-5.6 | 4,060 | 1/4” M | Ø 16mm | 230° F | Brass |
| VLP12-17 | 3.2-4.5 | 4,060 | 1/4” M | Ø 16mm | 230° F | Brass |

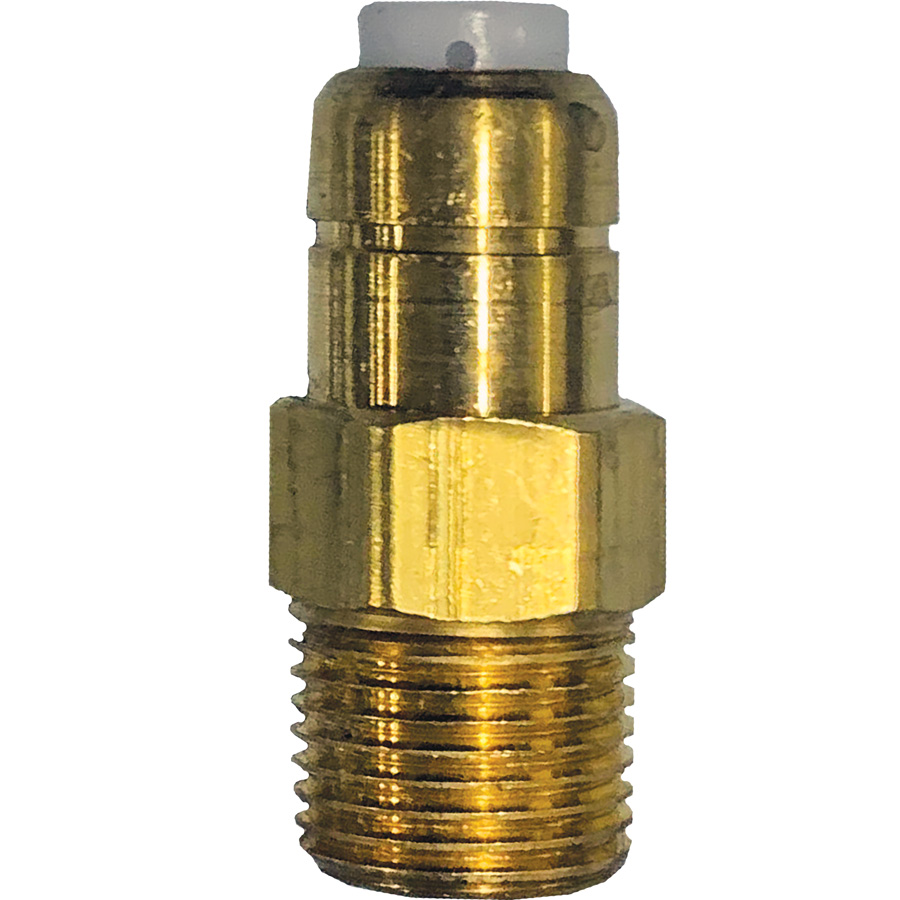

 | TPP140-3/8 | 200 | 3/8” M | 140° F | Brass | ||
 | SVL80 | 16 | 13,050 | 3/8” F | 1/2” F | 194° F | Brass |

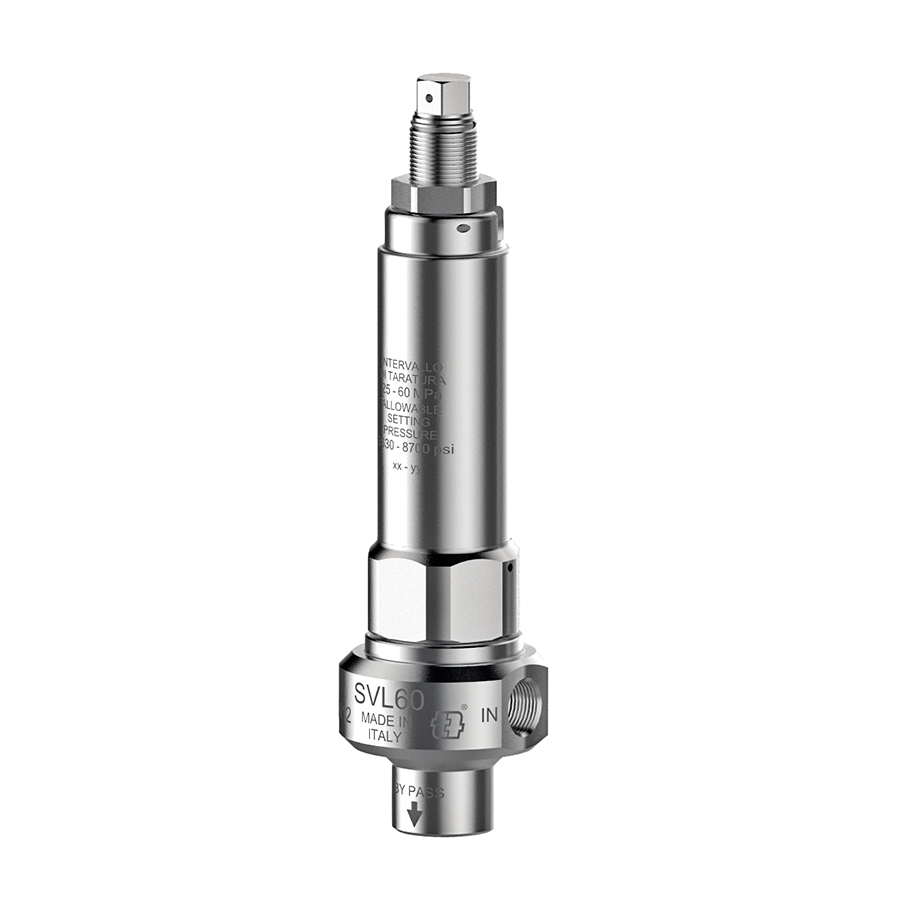

 | SVL60 * | 26.4 | 9,570 | 3/8” F | 1/2” F | 194° F | stainless steel |
 | SVL60-660-SS Safety Valve, 316 stainless | ||||||
 | SVL50 | 26.4 | 8,100 | 1/2” F | 1/2” F | 194° F | Brass |
 | SVL20/250 | 6.6 | 2,900 | 3/4” F | 194° F | Brass | |
 | AR961440 | ||||||
| AR1829 | ||||||
| AR1828 | ||||||
| AR1381340 | 1/4" | Brass | ||||
 | AR40399 | 21 | 8100 | 1/2” M | 194° F, 195° F | ||
 | SVX310 | 8 | 4500 | 3/8” F | 3/8” F | 194° F | stainless steel |
| SVL33/450 | 120 | 4350 | 1” F | 1” F | 194° F | |
| SVL22/450 | 120 | 2900 | 1” F | 1” F | 194° F | |
| SVL70 | 16 | 10450 | 3/8" F | 1/2” F | 194° F | |
 | CV3-40038 | 6.6 | 5,800, 5800 | 3/8” F | 3/8” F | 194° F | Brass |
 | CV3-40012 | 6.6 | 5,800, 5800 | 1/2” F | 1/2” F | 194° F | Brass |
 | CV3-31014 | 6.6 | 4,500, 4500 | 1/4” F | 1/4” F | 194° F | Brass |
| AR960850T | 1/4" NPT TAP | 303 Stainless Steel, Stainless Steel | ||||
| AR1941970 | 1/4" NPT TAP | Brass | ||||
| AR960090T | 1/4" TAP | Brass | ||||
| AR1260163 | 1/8" NPT TAP | Brass | ||||
| AR1260162T | 1/4" NPT TAP | Brass | ||||
 | AR5000-1 | 5.0 | 4000 | 3/8" M | 140° F | ||
 | GE2N12ge | 7250 | 1/2” F | 1/2” F | 194° F | ||
| GE2N38 | 7250 | 3/8” F | 3/8” F | 194° F | ||
 | ML610-14 | 8 | 145 | 1/4” M | 7.5mm | 140° F | Brass |
 | ML610-38 | 8 | 145 | 3/8” M | 7.5mm | 140° F | |
 | ML610-12 | 8 | 145 | 1/2” M | 7.5mm | 140° F | Brass |
 | MV610-38 | 8 | 145 | 3/8” M | 4mm | 140° F | Brass |
 | MV610-12 | 8 | 145 | 1/2” M | 4mm | 140° F | |
| SVL17 | 6.6 | 2400 | 3/8" F | 3/8” F | 194° F | |
 | AR40398 | 21 | 8700 | 1/2" M | 195° F | 1/2" F, 195° F | |
| GE2N34 | 5000 | 3/4” F | 3/4” F | 194° F | ||
| SVL28 | 6.6 | 4060 | 3/8" F | 3/8” F | 194° F | |
| AR3201430 | 1/8" NPT TAP | Brass | ||||
| GE2N14 | 7250 | 1/4” F | 1/4” F | 194° F | ||
 | TPP140 | 200 | 1/2" M, 1/2” M | 140° F | Brass | ||
 | TPP140-1/4A | 200 | 1/4" M, 1/4” M | 140° F | zinc |
