Discover the Power of Annovi Reverberi High Pressure Pumps: RRV and RCV Models
May 7, 2025
robertp
Introduction
As we enter the peak season for high-pressure pumps and lawn services, it's crucial to have reliable and efficient equipment to meet your needs. Annovi Reverberi, a leader in pump technology, offers two exceptional products: the RRV and RCV series pumps. Let's explore their technical features and best applications.

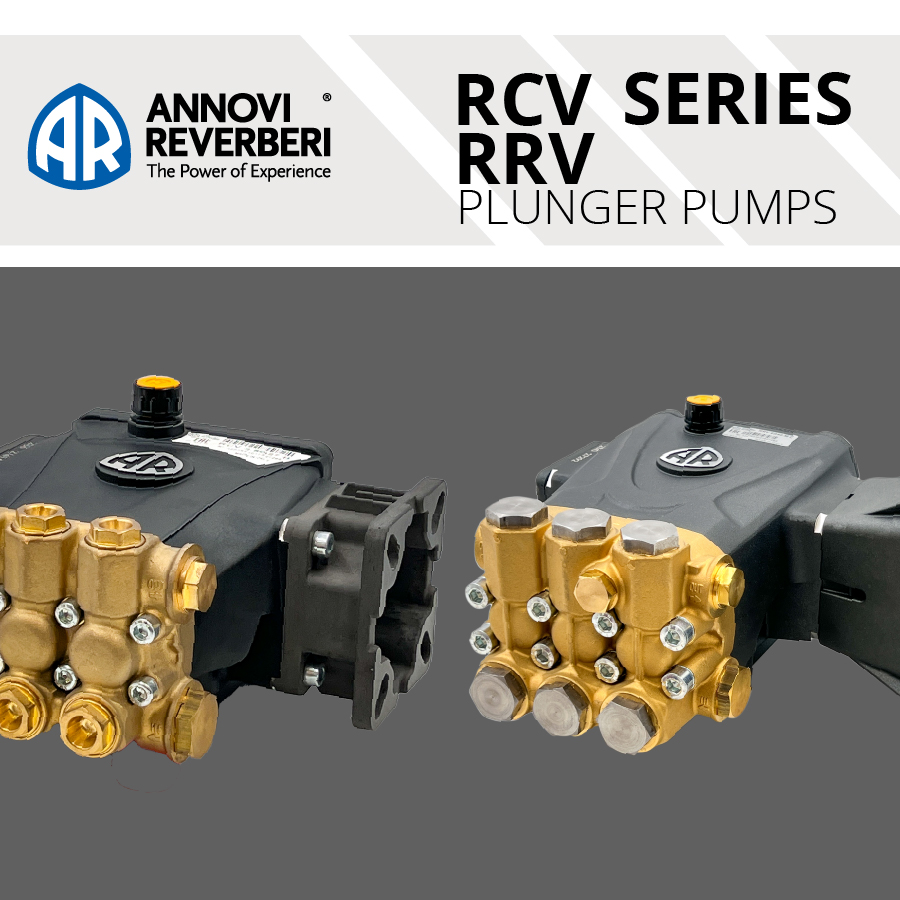

RRV Series
The Annovi Reverberi RRV series pumps are designed for heavy tasks and feature the latest in design and technology. Here are some key features:
Advanced Design: The RRV series includes a high-strength forged brass manifold, ceramic plungers with thicker walls to prevent thermal shock, and stainless steel valves, ensuring long-term use and reliability.
High Performance: The RRV series pumps deliver up to 3.0 GPM and can reach pressures of up to 3600 PSI. This performance is perfect for demanding applications.
Durability: Life tested over 2,000 hours at maximum performance, the RRV series withstands rigorous use. The new crankcase style and oversized bearings contribute to its robustness.
Ease of Maintenance: Features like the large side cover sight glass, rear cover oil drain, and high-quality high-pressure seals make maintenance simple and efficient.

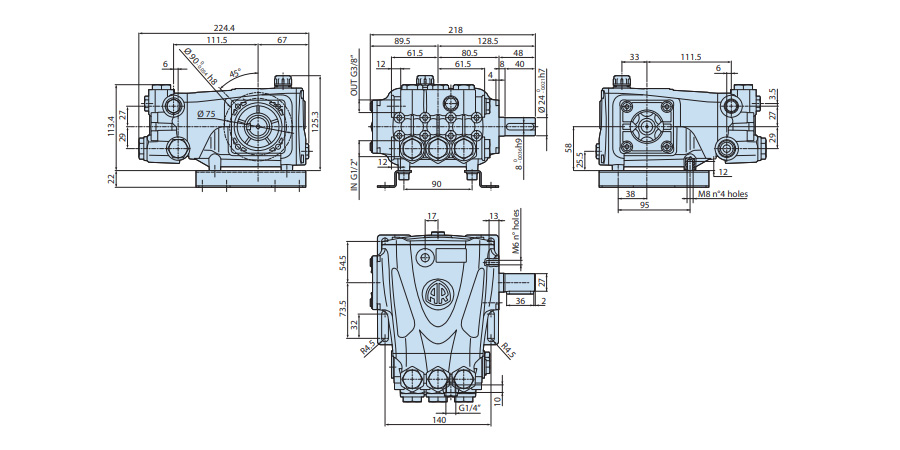

Specifications: The pump weighs 18 lbs, operates at 3400 RPM, and has a 1” hollow shaft. It requires a maximum of 9.82 horsepower and handles fluid temperatures up to 140°F. The pump includes 1/2" female inlet ports and 3/8" female outlet ports, with an oil capacity of 13.35 oz.
Applications for RRV Series
The RRV series pumps are best suited for:
Industrial Cleaning: Ideal for cleaning large surfaces, machinery, and equipment.
Pressure Washing: Perfect for heavy-duty pressure washing tasks, including cleaning driveways, sidewalks, and building exteriors.
Agricultural Use: Effective for washing farm equipment and vehicles.
RCV Series
The Annovi Reverberi RCV series pumps are designed for heavy tasks and feature the latest in design and technology. Here are some key features:
Advanced Design: The RCV series includes a high-strength forged brass manifold, ceramic plungers with thicker walls to prevent thermal shock, and stainless steel valves, ensuring long-term use and reliability.
High Performance: The RCV series pumps deliver up to 2.5 GPM and can reach pressures of up to 2700 PSI. This performance is perfect for demanding applications.
Durability: Life tested over 2,000 hours at maximum performance, the RCV series withstands rigorous use. The new crankcase style and oversized bearings contribute to its robustness.
Ease of Maintenance: Features like the large side cover sight glass, rear cover oil drain, and high-quality high-pressure seals make maintenance simple and efficient.

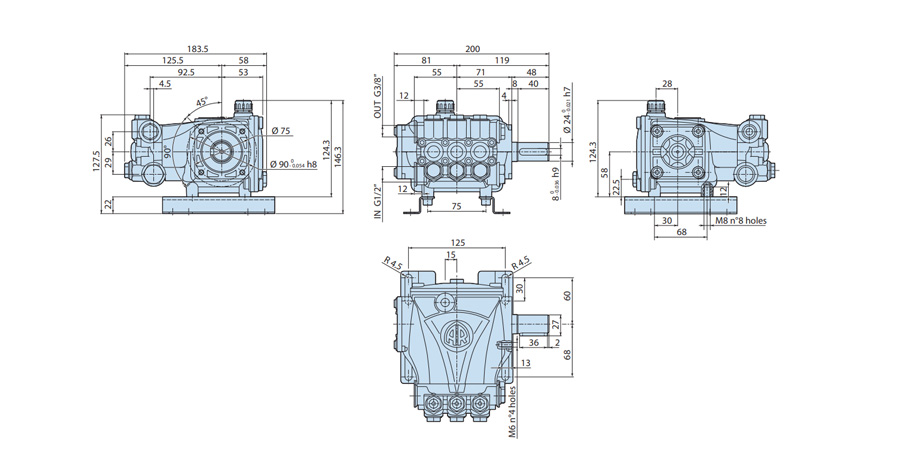

Specifications: The pump weighs 11 lbs, operates at 3400 RPM, and has a 3/4” hollow shaft. It requires a maximum of 6.2 horsepower and handles fluid temperatures up to 140°F. The pump includes 1/2" female inlet ports and 3/8" female outlet ports, with an oil capacity of 9.81 oz.
Applications for RCV Series
The RCV series pumps are best suited for:
Heavy-Duty Cleaning: Ideal for cleaning stubborn dirt and grime from surfaces and equipment.
Pressure Washing: Suitable for residential and commercial pressure washing tasks.
Agricultural Use: Effective for washing farm equipment and vehicles, ensuring they remain in top condition.
CONTACT US
Our team is here to help you find the perfect pump for your applications.
Like what you see but need more information about Annovi Reverberi high-pressure pumps, contact us. AR North America can work with you to customize a solution specific for your needs. Our team is here to help you find the perfect pump for your applications.
