Knowledge Base: Understanding Unloader and Regulator Valves in Triplex Plunger Pump Systems
Think of the unloader as a traffic cop that redirects flow when the system is idle, while the regulator is more like a cruise control, maintaining steady pressure during operation.
In high-pressure cleaning systems powered by triplex plunger pumps, unloader valves and regulator valves play critical roles in managing water flow and system pressure. While these terms are sometimes used interchangeably, they serve distinct functions and are suited to different applications.
General Differences: Unloader vs. Regulator Valves
In triplex plunger pump systems, both unloader valves and regulator valves serve to manage pressure and flow—but they do so in fundamentally different ways, depending on system design and usage.
Unloader Valve
An unloader valve is primarily a safety and control device. It reacts to changes in pressure—specifically when the trigger gun is released—and redirects water flow into a bypass loop, relieving pressure from the pump and discharge line. This prevents overheating, reduces wear, and conserves energy during idle periods.
Flow Behavior:
- When the trigger is released, pressure spikes.
- The unloader opens the bypass, sending water back to the inlet or tank.
- When the trigger is pulled again, the valve closes and resumes full pressure flow.
This makes unloaders ideal for systems with intermittent flow, such as mobile pressure washers or cleaning setups with trigger guns.

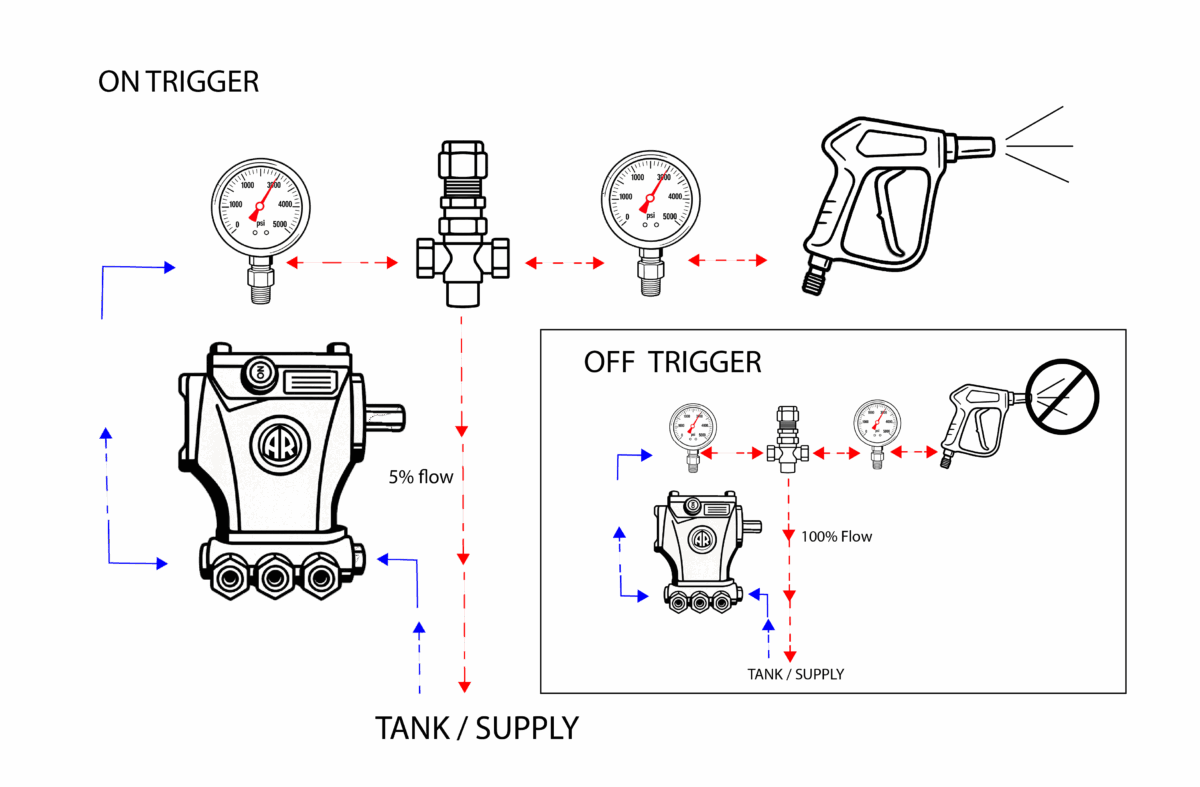

Regulator Valve
A regulator valve is designed to maintain a consistent operating pressure, regardless of changes in flow demand. Unlike unloaders, regulators do not trap pressure or wait for a trigger event—they continuously adjust flow to keep pressure stable.
Flow Behavior:
- When flow is restricted or stopped, the regulator diverts excess water through the bypass.
- Pressure remains constant in the discharge line.
- The system operates smoothly without pressure spikes or drops.
Regulators are best suited for continuous-duty systems, such as industrial cleaning stations or setups without trigger guns.
Types of Valves
Unloader Valves
- Pressure-actuated unloaders: Triggered by a rise in pressure when the gun is closed.
- Flow-actuated unloaders: Respond to a drop or stop in flow.
- Trapped pressure unloaders: Maintain pressure in the line until the trigger is released.
- Flow-sensitive unloaders: Offer smoother transitions and are ideal for systems with variable flow.
Regulator Valves
- Balanced relief regulators: Maintain pressure by diverting excess flow.
- Adjustable pressure regulators: Allow manual tuning of system pressure.
- Thermal relief regulators: Protect against overheating by releasing water when temperatures rise.
When to Use Each Valve
| Feature / Use Case | Unloader Valve ✔︎ | Regulator Valve ✔︎ |
|---|---|---|
| Automatically redirects flow to bypass | ✔︎ | ❌ |
| Maintains constant pressure during use | ❌ | ✔︎ |
| Used with trigger gun systems | ✔︎ | ❌ |
| Ideal for intermittent spray applications | ✔︎ | ❌ |
| Best for continuous flow systems | ❌ | ✔︎ |
| Protects pump from pressure spikes | ✔︎ | ✔︎ |
| Adjustable pressure control | ✔︎ (limited) | ✔︎ (precise) |
| Common in pressure washers | ✔︎ | ✔︎ |
| Requires bypass plumbing | ✔︎ | ✔︎ |
Considerations When Choosing
System Design: Trigger gun systems benefit from unloaders; continuous flow systems may require regulators.
- Pressure Range: Ensure the valve matches your pump’s PSI and GPM ratings.
- Temperature Tolerance: High-temp applications need valves rated for thermal protection.
- Safety Requirements: Unloaders offer built-in safety by diverting flow when not in use.
- Maintenance Needs: Flow-sensitive unloaders and balanced regulators often offer easier serviceability.
Need Help with Your System?
Choosing between an unloader and a regulator valve depends on your system’s design, usage patterns, and safety requirements. At AR North America, we specialize in helping customers configure systems with the right components for optimal performance and longevity.
Contact us today to discuss your unique application. Our team is ready to assist with system design and product selection tailored to your needs.
You can explore our selection of unloader and regulator valves in the Accessories section of our website.
