Tri-Plex Plunger Pumps

Three piston high pressure pumps, designed to meet the toughest jobs

XW, SHP Series - 194

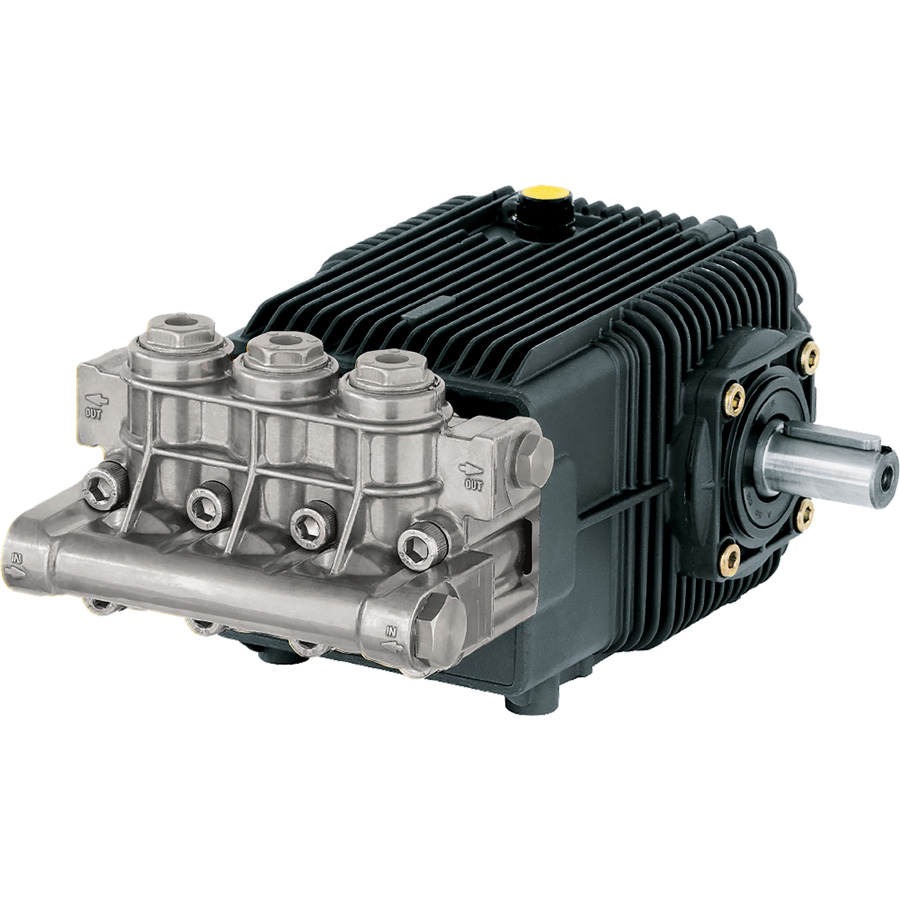

Medium-size crank-connecting rod mechanism pump for use on high pressure cleaning systems. This pump, for use up to 500 bar, is derived from the existing RG series pumps, with a new-design head with the intake valves placed above the plungers to generate higher-than-normal pressure. The pump is of conventional design, with crankshaft in high-strength steel supported by two high-quality, oversized tapered roller bearings. The connecting rods are in a special low-friction alloy. The pump body and side covers are in anodized die-cast high-strength aluminum alloy. The pump features one-piece ceramic plungers and double gasket sealing system. The valves of rugged construction to withstand the high operating pressures.

Model	Max GPM	Max PSI	Max RPM	Stroke mm	Shaft Version	Shaft Type	Shaft Size	Power EBHP	Weight (lbs)
XW3028N	7.92	4000	1450	19.8	N, Natural	Solid		21.8	34
SHP2250HN	5.8	7250	1450	21	N, Natural	Solid		28.9	29
SHP2050HN	5.3	7250	1450	18.8	N, Natural	Solid		26.4	29
SHP1550HN	3.96	7250	1450	15	N, Natural	Solid		20	29
XWL50.20NB	13.2	2900	1450	19.4	N, Natural, Neutral Shaft	Solid	24mm	25.5	34
SHPA4G70HN	4	7250	1450	12.2	N, Natural, Neutral Shaft	Solid	27 mm	20	29
SXWA7G50N	7	5000	1750	21	N, Natural, Neutral Shaft	Solid	24mm	24	35
SXWA55G50N	5.5	5000	1750	17.2	N, Natural, Neutral Shaft	Solid	24mm	18.9	35
SXWA4G50N	4	5000	1750	12.2	N, Natural, Neutral Shaft	Solid	24mm	13.7	35
SXW21.350	5.55	5100	1450	21	N, Natural, Neutral Shaft	Solid	24mm	20	35
SXW15.35	3.96	5100	1450	15	N, Natural, Neutral Shaft	Hollow	24mm	15	35
XWLA13G15N	13	1450	1750	17.2	N, Natural, Neutral Shaft	Solid	24mm	13	34
XWL42.15N	11.09	2200	1450	17.2	N, Natural, Neutral Shaft	Solid	24mm	16.7	34
XWL50.15N	13.2	2200	1450	19.4	N, Natural, Neutral Shaft	Solid	24mm	19.9	34
XWL41.21N	10.8	3000	1450	16.6	N, Natural, Neutral Shaft	Solid	24mm	22.2	34
XWF36.17N	9.51	2500	1000	19.8	N, Natural, Neutral Shaft	Solid	24mm	16.3	34
XWF30.20N	7.92	2900	1000	17.2	N, Natural, Neutral Shaft	Solid	24mm	15.8	34
XWF26.20N	6.87	2900	1000	15	N, Natural, Neutral Shaft	Solid	24mm	13.7	34
XWT2118N	5.55	2900	500	19.8	N, Natural, Neutral Shaft	Solid	24mm	11	34
XWA9G30N	9	3000	1750	19.8	N, Natural, Neutral Shaft	Solid	24mm	18.5	34
XWAM8G35N	8	3500	1750	19.8	N, Natural, Neutral Shaft	Solid	24mm	19.2	34
XWAM7G40N	7	4000	1750	17.2	N, Natural, Neutral Shaft	Solid	24mm	19.2	34
XWAM55G40N	5.5	4000	1750	13.8	N, Natural, Neutral Shaft	Solid	24mm	15	34
XWAM4G40N	4	4000	1750	10	N, Natural, Neutral Shaft	Solid	24mm	11	34
XW3025N	7.92	3600	1450	19.8	N, Natural, Neutral Shaft	Solid	24mm	20	34
XWM2623N	6.87	3600	1450	19.8	N, Natural, Neutral Shaft	Solid	24mm	17	34
XWM1530N	4	4350	1450	12.2	N, Natural, Neutral Shaft	Solid	24mm	12	34
XWM2128N	5.55	4060	1450	16.6	N, Natural, Neutral Shaft	Solid	24mm	15.5	34
