Pump Spotlight: RTX Series 366

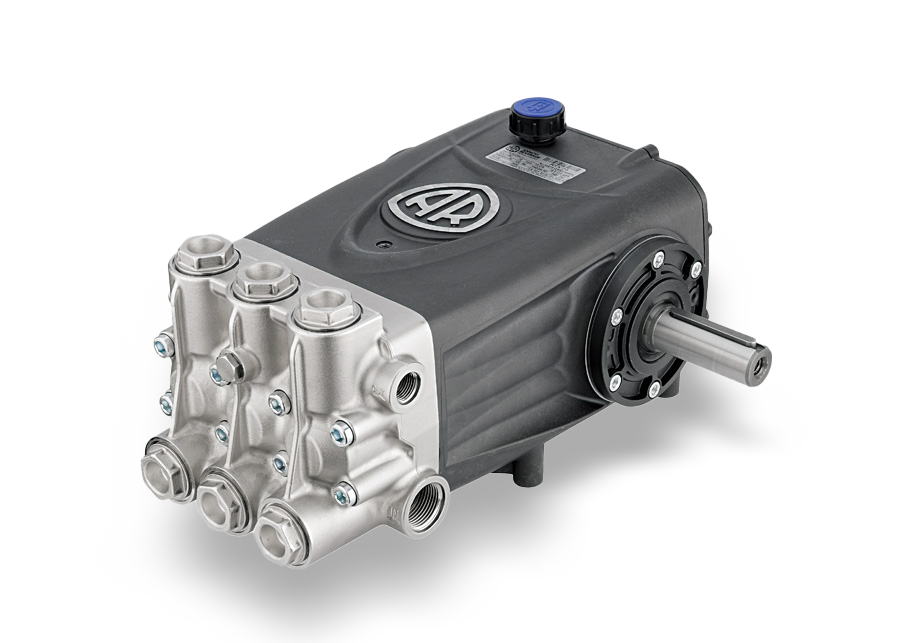

RTX- TRIPLEX PLUNGER PUMPS
At Annovi Reverberi, innovation is more than a tradition—it's a commitment. This month, we’re turning the spotlight on one of our most robust and reliable pump lines: the RTX Series. Designed for high-demand industrial and commercial applications, the RTX Series delivers the power, precision, and durability that professionals rely on every day.
WHY CHOOSE THE ANNOVI REVERBVERI RTX PUMP?
The RTX Series is built for professionals who need high-pressure performance and rugged reliability in continuous-duty environments. Designed with solid ceramic plungers, nickel-plated forged brass heads, and oversized bearings, RTX pumps are made to handle extreme workloads with minimal maintenance. Whether you're powering industrial cleaning systems, agricultural sprayers, or high-performance pressure washers, the RTX delivers consistent output, thermal efficiency, and long service life—making it a trusted choice when uptime and durability are non-negotiable.
TECHNICAL FEATURES & SPECIFICATIONS
As an example, let’s take a closer look at the RTX30, one of the most versatile and widely used models in the RTX Series:
- Pump Type: Triplex plunger pump
- Head Material: Nickel-plated forged brass (high strength and corrosion resistance)
- Plungers: One-piece solid ceramic (minimizes wear and resists thermal shock)
- Valves: Stainless steel convexed intake and discharge valves (optimized for fluid dynamics and chemical resistance)
- Crankcase: Die-cast aluminum with oil bath lubrication
- Side cover with oil sight glass
- Rear cover with oil drain plug
- Oversized cooling fins for thermal dissipation
- Bearings: Oversized friction bearings (for smoother operation and extended service life)
- Connecting Rods: Bronze alloy (durable under high load and continuous duty)
- Seals: Double gasket sealing system (high-pressure resistance and leak prevention)
Performance Specs – RTX30
- Max Pressure: 300 bar (4350 PSI)
- Flow Rate: 30.3 L/min (8.0 GPM)
- RPM: 1450
- Power (EBHP): 23.9
- Inlet Port: 3/4"
- Outlet Port: 3/8" BSP-F
- Weight: 72 lbs
- Bore x Stroke: 20 mm x 23 mm
- Crankshaft ID: 3
Applications
The RTX Series is ideal for:
- Commercial Pressure Washing
- Car Wash Systems
- Industrial Cleaning
- Agricultural Spraying
- Food Processing Equipment
| Model | Max Pressure (bar/PSI) | Flow Rate (L/min / GPM) | RPM | Power (EBHP) | Weight (lbs) |
|---|---|---|---|---|---|
| RTX30 | 300 / 4350 | 30.3 / 8.0 | 1450 | 23.9 | 72 |
| RTX50 | 300 / 4350 | 45.4 / 12.0 | 1450 | 35.8 | 72 |
| RTX60 | 300 / 4350 | 53.0 / 14.0 | 1450 | 41.8 | 72 |
| RTX70 | 200 / 3000 | 64.4 / 17.0 | 1450 | 33.8 | 72 |
| RTX85 | 200 / 2200 | 85.0 / 21.0 | 1450 | 31.7 | 72 |
| RTX100 | 124 / 1800 | 90.8 / 24.0 | 1450 | 29.8 | 72 |
| RTX150.100N | 100 / 1500 | 150.0 / 39.6 | 1450 | 36.2 | 72 |
| RTX30.500 | 500 / 7250 | 30.3 / 8.0 | 1450 | 39.8 | 72 |
WHERE IT FITS IN THE AR RANGE
The RTX Series sits at the top end of AR’s industrial pump lineup:
- Higher pressure and flow capacity than the XW and RK/RKA series
- Engineered for heavy-duty, continuous-use environments
- Ideal for applications where performance, durability, and uptime are critical
This makes the RTX a go-to choice for professionals who need maximum output and rugged reliability—without compromise.
Does the RTX Pumps series meet your needs?
The Annovi Reverberi RTX Series is more than just a pump — it’s a powerhouse engineered for professionals who demand maximum performance and zero downtime. With its rugged construction, high-pressure capabilities, and low-maintenance design, the RTX delivers unmatched reliability and endurance — job after job, day after day, even in the most demanding environments.
Be sure to check out our extend line of RTX Pumps. They won't disappoint.
Own a RTX Pump?
Be sure to explore our maintenance videos on our Youtube Channel.
