Tri-Plex Plunger Pumps

Three piston high pressure pumps, designed to meet the toughest jobs

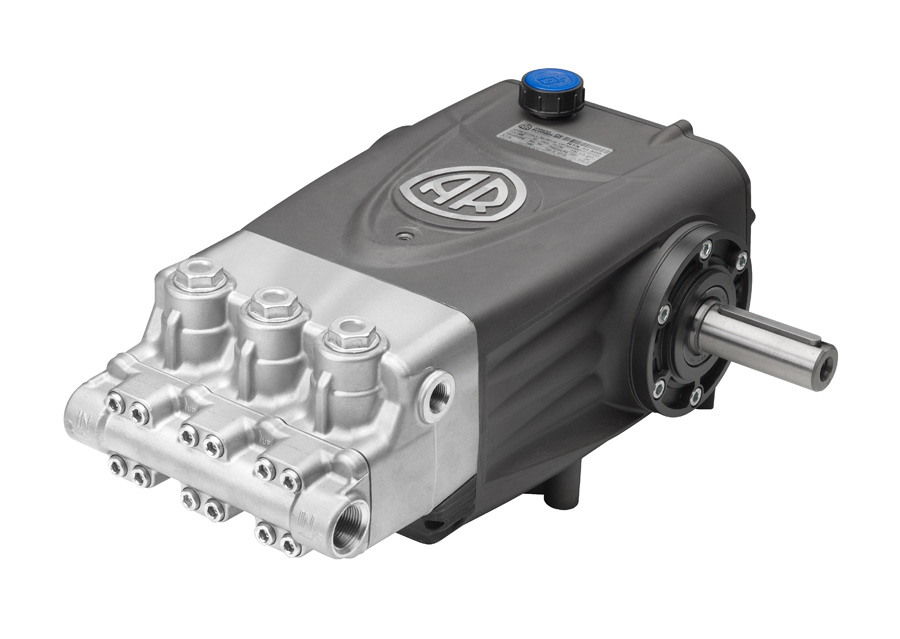

RTX Series - 366

3-piston alternating volumetric pumps for use on cleaning units and industrial systems. Pump body and cover in die-cast aluminum alloy. Side cover may be blind or incorporate oil sight glass. Rear cover with oil drain outlet. Pistons driven by crank-connecting rod mechanism. Pump shaft in pressed high-strength steel. Oversized friction bearings. Bronze connecting rods. One-piece ceramic pistons. Pump head in nickel - plated brass. Double gasket sealing system. Intake and delivery valves have plugs for easier maintenance.

Model	Max GPM	Max PSI	RPM	Stroke mm	Shaft Type	Shaft Size	Power EBHP	Weight (lbs)
RTX150	39.6	1450	1450	28	Solid	26 X 80	36.2	72
RTX-HW85.15N	22.5	3000	1450	23	Solid	32 X 80	25.3	72
RTX60	14	4350	1450	28	Solid	30 X 80	41.8	72
RTX30.500N	8	7250	1450	23	Solid	28 X 80	39.8	72
RTX85	22.5	3000	1450	28	Solid	32 X 80	31.7	72
RTX100	24	1800	1450	23	Solid	25 X 80	29.8	72
RTX70	17	3000	1450	23	Solid	31 X 80	33.8	72
RTX50	12	4350	1450	23	Solid	29 X 80	35.8	72
RTX30	8	4350	1450	23	Solid	27 X 80	23.9	72
