Tri-Plex Plunger Pumps

Three piston high pressure pumps, designed to meet the toughest jobs

RTD, CR Series - 418

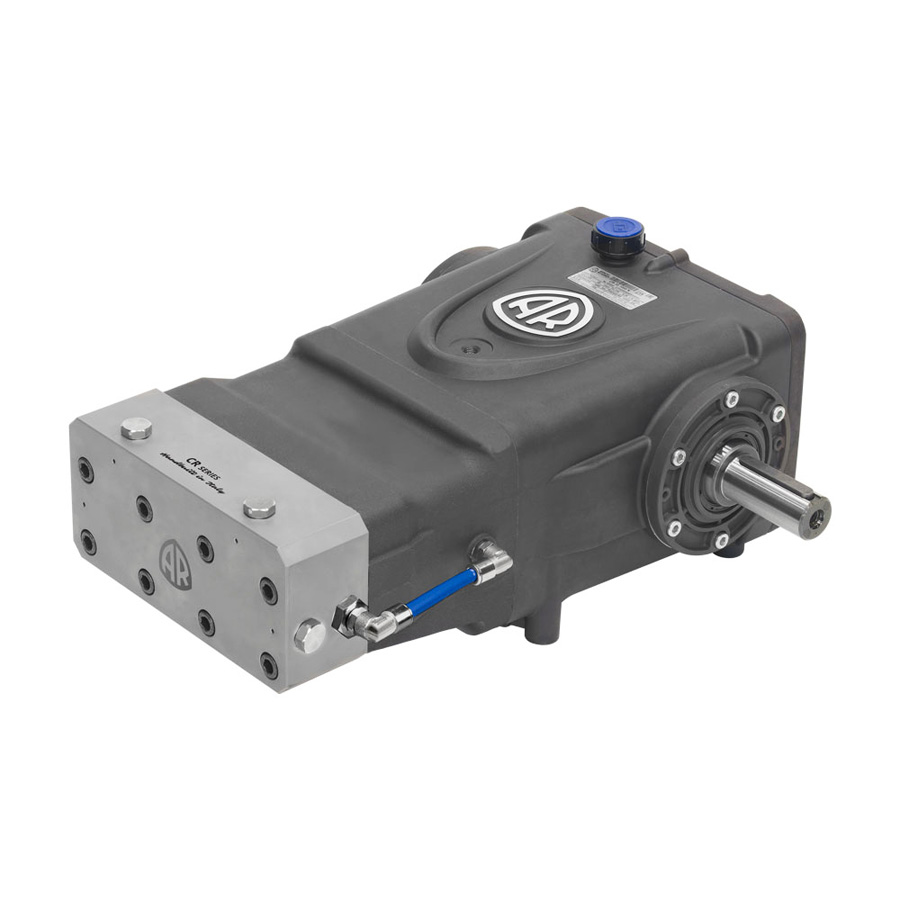

Triplex reciprocating plunger pump. Anodized aluminum crankcase. Side cover with oil sight glass. Rear cover with oil drain plug and oil sight glass. Magnetic oil drain plug for a better cleaning inside the crankcase. Bronze connecting rods. Oversized tapered roller bearings. Solid ceramic plungers. Double gasket system. Oversized inlet and outlet check valves. Brass pump head.

Model	Max GPM	Max PSI	Max RPM	Stroke mm	Shaft Version	Shaft Type	Shaft Size	Power EBHP	Weight (lbs)
CR8-1000N	2.11	15000	1000	20	N, Natural	Solid		21.7	136
CR18-1000	4.75	15000	1000	42	N, Natural	Solid		48.9	136
CR20-1000	5.3	15000	1000	48	N, Natural	Solid		54.4	136
CR15-1000	4	15000	1000	35	N, Natural	Solid		41.1	136
RTD30.600HN	8, 8.0	8700	1000		N Version, N, Natural	Solid		46	143.3
RTD38.600HN	10	8700	1000		N Version, N, Natural	Solid		57	143.3
RTD130-200H	34.5	2900	1000	42	N, Natural, Neutral Shaft	Solid	35mm	68	128
RTD100-200SX	25	2900	1000	42	N, Natural, Neutral Shaft	Solid	35mm	49.8	128
RTD160-130	40	1850	1000	42	N, Natural, Neutral Shaft	Solid	35mm	50.8	128
RTD100-200	25	3000	1000	42	D, Direct Gas, Direct Gas Shaft	Solid	35mm	48.8	128
RTD130-160	32	2300	1000	42	N, Natural, Neutral Shaft	Solid	35mm	50.5	128
