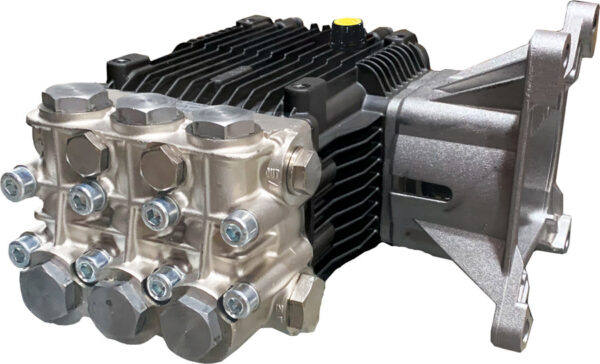

The Annovi Reverberi RKV35G30AD-F24, D version 1" hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RKV35G30AD-F24 can produce up to 3000 Max PSI, 3.5 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RKV35G30AD-F24 weighs in at 21 lbs and boasts a sleek compact design.
| Weight | 21 lbs |
|---|---|
| Pump Orientation | Horizontal |
| Max (l/m) | 13.2 |
| Max RPM | 3400 |
| Weight (lbs) | 21 |
| Bore Diameter (mm) | 18 |
| Capacity (oz) | 15 |
| Shaft Diameter | 1" |
| Series | 228 (RKV) |
| Head Material | Brass |
| Pump Head Material | brass |
| Connecting Rods | aluminum |
| Max GPM | 3.5 |
| Max L/Min | 13.2 |
| Max PSI | 3000 |
| Max Bar | 206 |
| Power EBHP | 7.5 |
| Bore Dia mm | 18 |
| Stroke mm | 6.2 |
| CSID Stamp | 9 |
| Inlet (in) | 1/2" F |
| Outlet (in) | 3/8" F |
| Max Temp | 140° F |
| Oil Capacity (oz.) | 15 oz |
| RPM | 3400 |
| Shaft Size | 1" |
| Shaft Version | D, Direct Gas, Direct Gas Shaft |
| Shaft Type | Hollow |
| Flange | F24 |
| Market | Commercial |
| Pump Type | Tri-Plex Plunger |
