RKSS13.17N

Description

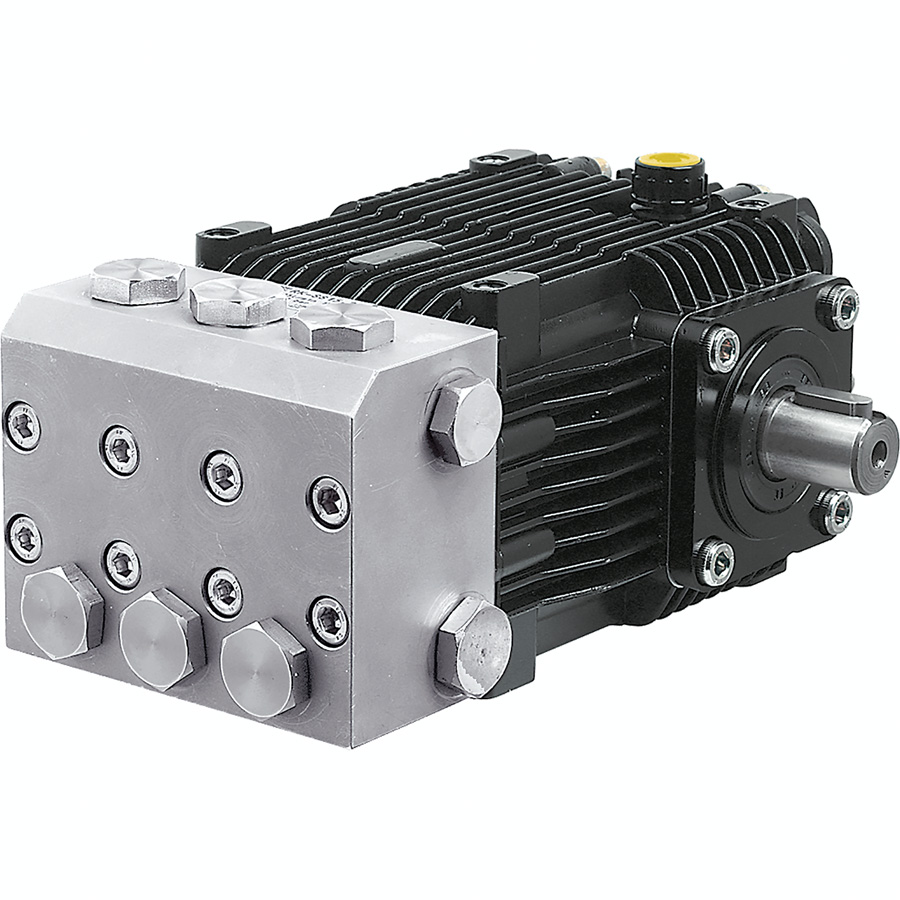

The Annovi Reverberi RKSS13.17N is a heavy-duty horizontal triplex plunger pump built for specialty markets that demand reliable performance. It produces up to 3.43 GPM at a maximum pressure of 3000 PSI and operates at 1450 RPM with a 24mm solid shaft. Featuring a stainless steel head for enhanced durability, this pump uses a ½” F inlet and 3/8” F outlet. It is rated for temperatures up to 140°F and offers a 15 oz oil capacity for efficient maintenance. Weighing only 22 lbs, the RKSS13.17N is a strong and versatile solution for high-pressure applications.

Documentation Downloads

For More Information

Find a Service Dealer
Or Call
(763) 398-2008
Additional Information
Related Products
Accessories

Additional information

Weight 22 lbs
Max (l/m)

13

Pump Orientation

Horizontal

Max RPM

1450

Weight (lbs)

22

Bore Diameter (mm)

18

Capacity (oz)

15

Shaft Diameter

24mm

Series

228 (RK)

Head Material

stainless steel

Pump Head Material

Stainless_Steel

Max GPM

3.43

Max L/Min

13

Max PSI

3000

Max Bar

200

Power EBHP

7.1

Bore Dia mm

18

Stroke mm

12.8

CSID Stamp

3

Inlet (in)

1/2" F

Outlet (in)

3/8" F

Max Temp

140° F

Oil Capacity (oz.)

15 oz

RPM

1450

Shaft Size

24mm

Shaft Version

N, Natural, Neutral Shaft

Shaft Type

Solid

Specialty

Stainless Steel

Market

Specialty

Pump Type

Tri-Plex Plunger
