STP-SS2050N

Description

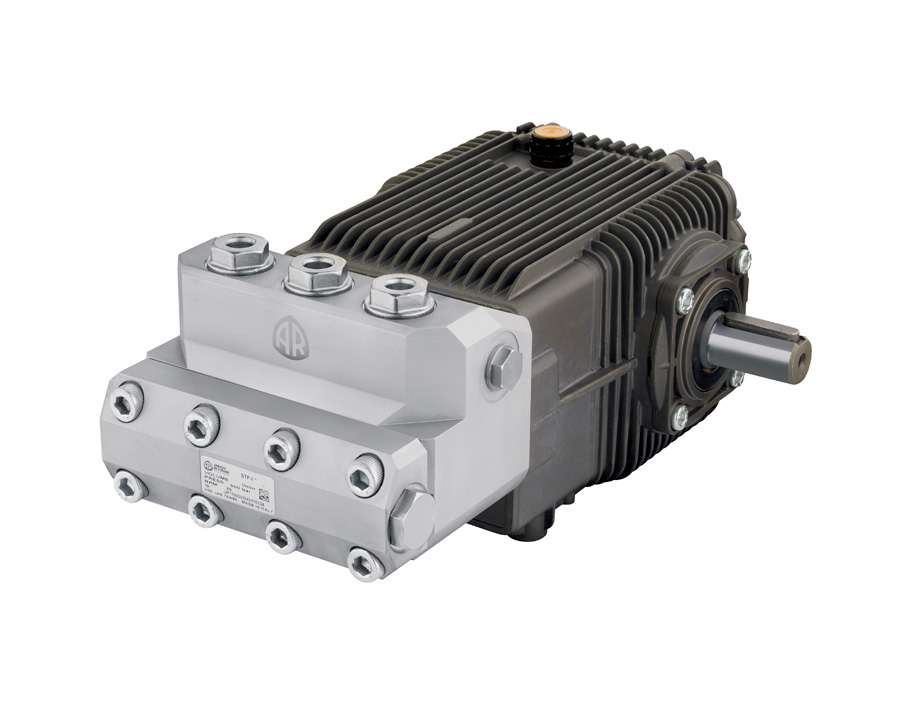

The Annovi Reverberi STP-SS2050N, N version 24 mm Solid shaft triplex pump is ready for direct mounting. This pump is manufactured with a stainless steel-420 pump head suitable for a wide range of conditions. The STP-SS2050N can produce up to 7250 Max PSI, 5.3 Max GPM, and is designed to operate at 1450 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the STP-SS2050N weighs 41 lbs and delivers the performance you demand.

For More Information

Find a Service Dealer
Or Call
(763) 398-2008
Additional Information
Related Products
Accessories

Additional information

Max GPM

5.3

Max Bar

500

Max PSI

7250

Power EBHP

26.3

Max RPM

1450

Weight (lbs)

41

Bore Diameter (mm)

18

Stroke mm

18.8

CSID Stamp

12

Inlet (in)

1/2"

Outlet (in)

3/8"

Capacity (oz)

32

Max Temp

140° F

Pump Orientation

Horizontal

Shaft Type

Solid

Shaft Version

N, Natural

Shaft Diameter

24 mm

Series

194 (STP)

Head Material

stainless steel

Connecting Rods

aluminum

O-Ring

buna

Max L/Min

20
