RTX50.300 c

Description

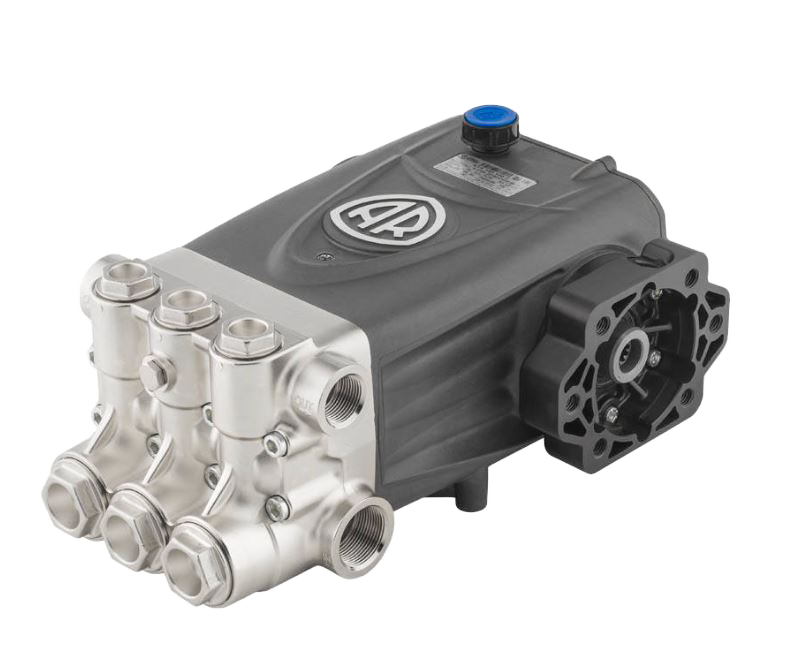

Annovi Reverberi RTX50.300c series 418 pimp features a direct drive flange and 146 mm hollow shaft for 13T splined shaft motors. It couples with an F56 flange for close coupling hydraulic motors SE J744, C127-2, and C127-4. This pump has a nickel-plated brass pump head and an anodized aluminum crankcase, making it suitable for various conditions. RTX50.300c produces up to 4350 PSI and 13.2 GPM at 1450 RPM. Constructed with bronze connecting rods, one-piece ceramic pistons, and oversized friction bearings, the RTX50.300c weighs 71.65 lbs. and delivers exceptional performance.

Coupled with /Motor Ratings (CC):

  • 90 cc Hydraulic Motor: 142 l/min @ 146 bar

Key Features:

  • Die-cast aluminum alloy pump body and cover: Durable and lightweight.
  • Pressed high-strength steel pump shaft: Robust and long-lasting.
  • Oversized friction bearings: Reliable and reduce wear.
  • Die-cast special low-friction zinc-aluminum alloy connecting rods: Smooth operation.
  • One-piece ceramic pistons, nickel plated: Resistant to wear and corrosion.
