RTD200.100N

Description

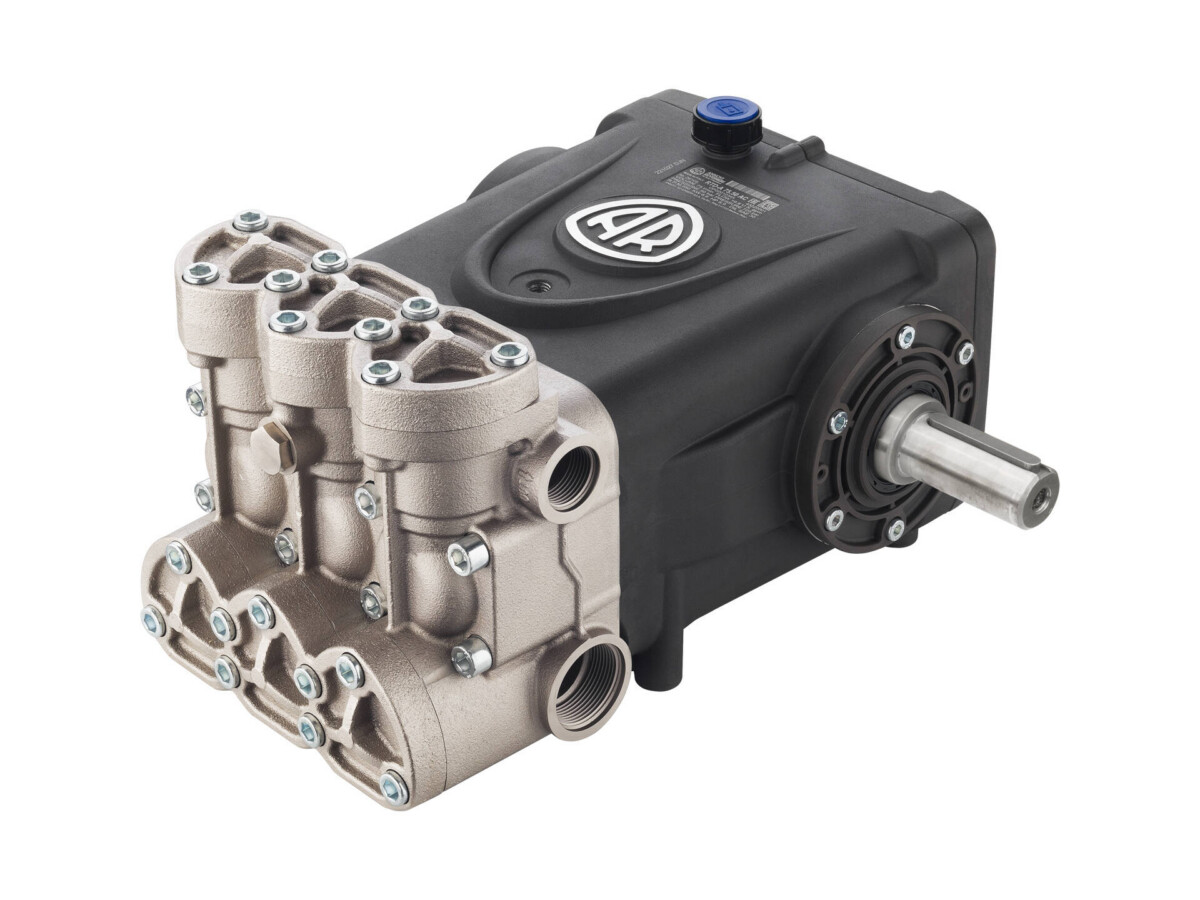

The Annovi Reverberi RTD200.100N is a high-flow industrial triplex plunger pump engineered for demanding cleaning, processing, and fluid handling applications. Designed for continuous-duty operation, the RTD200.100N delivers up to 200 LPM (53 GPM) at 100 Bar (1,450 PSI), making it an ideal solution for OEM equipment manufacturers requiring exceptional flow capacity and dependable long-term performance.

Built on AR's proven 418 Series platform, the RTD200.100N features a nickel-plated brass pump head, oversized bearings, ceramic pistons, and bronze connecting rods designed to withstand demanding operating conditions. Its combination of high flow and rugged construction makes it well suited for industrial cleaning systems, industrial process applications, municipal equipment, sewer jetting systems, and construction industry equipment where reliability and productivity are critical

For More Information

Find a Service Dealer
Or Call
(763) 398-2008
Additional Information
Related Products
Accessories

Additional information

Weight 128 lbs
Pump Orientation

Horizontal

Max RPM

950

Weight (lbs)

130.1

Capacity (oz)

110

Shaft Diameter

35mm

Series

418 (RTD)

Head Material

Nickle Plated Cast Iron

Connecting Rods

bronze

Max GPM

53

Max L/Min

200

Max PSI

1450

Max Bar

100

Power EBHP

51

Bore Dia mm

44

Stroke mm

48

Inlet (in)

1 1/2"

Outlet (in)

1"

Max Temp

140° F

Oil Capacity (oz.)

110oz

RPM

950

Shaft Size

35mm

Shaft Version

N, Natural, Neutral Shaft

Shaft Type

Solid

Market

Industrial

Pump Type

Tri-Plex Plunger
