JRV3G30D-F7-EZ

Description

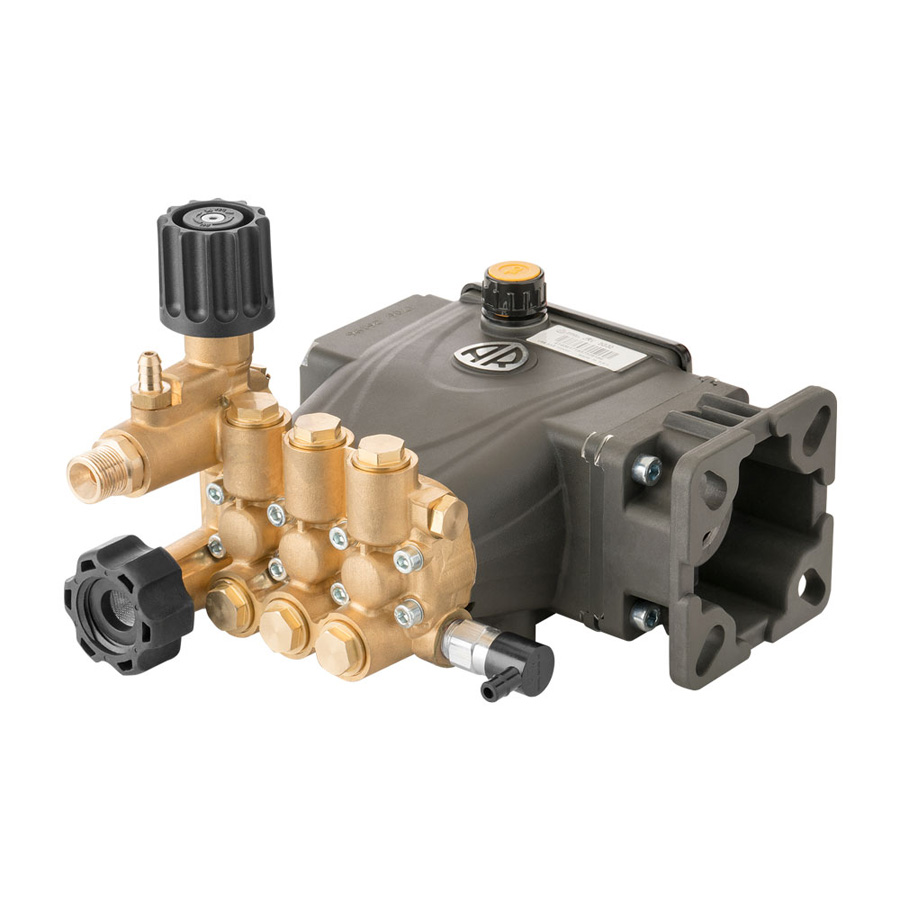

The Annovi Reverberi JRV3G30D-F7-EZ, D version 3/4" hollow shaft triplex pump is ready for direct mount. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The JRV3G30D-F7-EZ can produce up to 3000 Max PSI, 3 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the JRV3G30D-F7-EZ weighs 8.9 lbs and boasts a sleek compact design.

Documentation Downloads

For More Information

Find a Service Dealer
Or Call
(763) 398-2008
Additional Information
Related Products
Accessories

Additional information

Max (l/m)

11.4

Max GPM

3

Max Bar

206

Max PSI

3000

Power EBHP

6.2

Max RPM

3400

Weight (lbs)

8.9

Bore Diameter (mm)

12

Stroke mm

10.7

CSID Stamp

2

Inlet (in)

3/8" F

Outlet (in)

3/8" M

Capacity (oz)

5.43

Max Temp

140° F

Flange

F7

Pump Orientation

Horizontal

Shaft Type

Hollow

Shaft Version

D, Direct Gas

Shaft Diameter

3/4"

Series
Head Material

brass

Connecting Rods

aluminum

O-Ring

buna
