JK-SS15.15N

Description

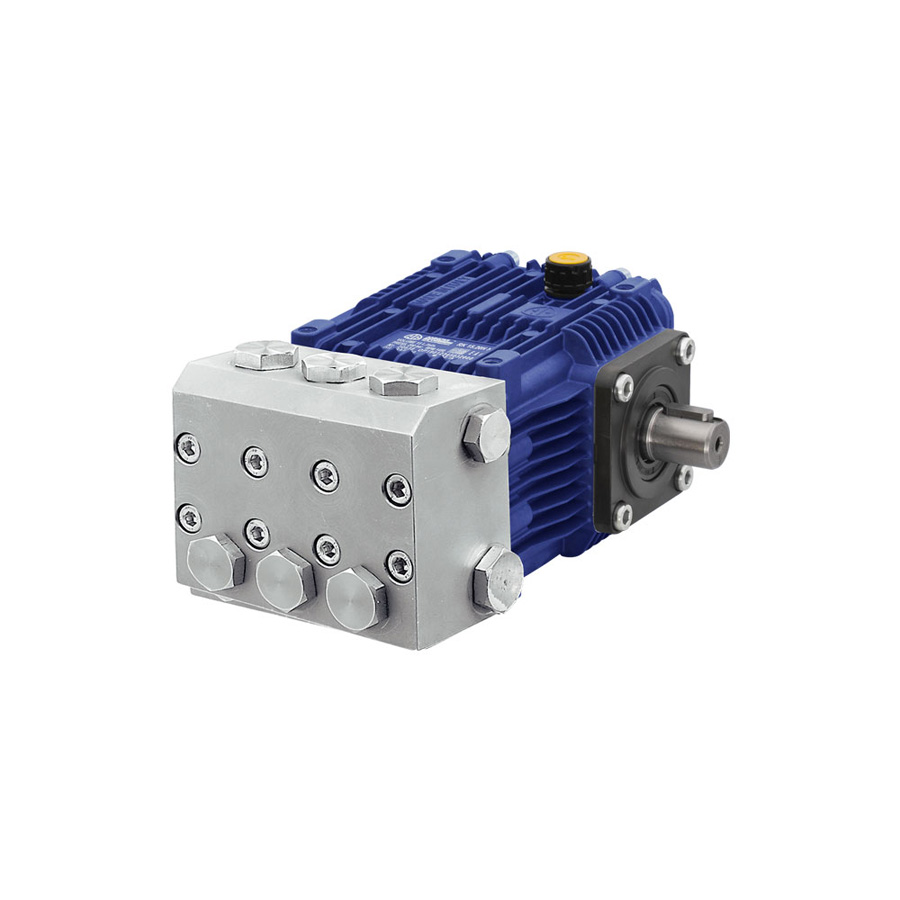

The Annovi Reverberi JK-SS15.15N, N version 35mm solid shaft triplex pump is ready for direct mount. This pump is manufactured with a stainless steel pump head suitable for a wide range of conditions. The JK-SS15.15N can produce up to 2200 Max PSI, 4 Max GPM, and is designed to operate at 1450 RPM. Constructed with frictionless bronze connecting rods and ceramic pistons, the JK-SS15.15N weighs 22 lbs and boasts a sleek compact design.

For More Information

Find a Service Dealer
Or Call
(763) 398-2008
Additional Information
Related Products
Accessories

Additional information

Max (l/m)

15

Max GPM

4

Max Bar

150

Max PSI

2200

Power EBHP

6

Max RPM

1450

Weight (lbs)

22

Bore Diameter (mm)

18

Stroke mm

13.8

CSID Stamp

2

Inlet (in)

1/2" F

Outlet (in)

3/8" F

Capacity (oz)

14.5

Max Temp

140° F

Pump Orientation

Horizontal

Shaft Type

Solid

Shaft Version

N, Natural

Shaft Diameter

35 mm

Series

228 (JK)

Head Material

stainless steel

Connecting Rods

bronze

O-Ring

viton
