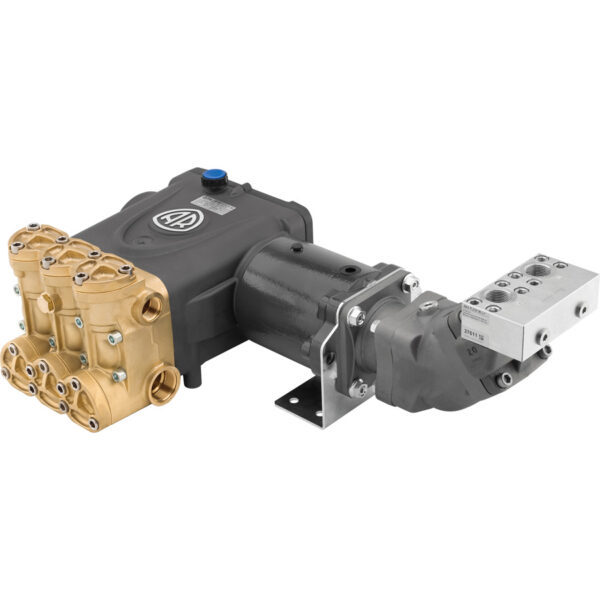

The Annovi Reverberi HYD-RTD160.130 is engineered for high-capacity hydraulic needs, delivering up to 151.4 liters per minute (40 GPM) with a maximum pressure of 1850 PSI. This robust pump operates at 1000 RPM and features a solid brass head with bronze connecting rods for long-lasting performance. With a 1 1/2” inlet and a 1” outlet, it integrates seamlessly into various hydraulic setups. The HYD-RTD160.130 boasts a substantial motor pressure capability of 3770 PSI, making it an excellent choice for intensive hydraulic tasks that demand reliability and power.
| Max GPM | 40 |
|---|---|
| Max Bar | 128 |
| Max PSI | 1850 |
| Power EBHP | 54.8 |
| Max RPM | 1000 |
| Weight (lbs) | 140 |
| Bore Diameter (mm) | 40 |
| Stroke mm | 42 |
| Inlet (in) | 1 1/2", 1 1/2” |
| Outlet (in) | 1", 1” |
| Capacity (oz) | 110 |
| Shaft Version | N, Natural |
| Shaft Diameter | 35 mm |
| Head Material | brass |
| Connecting Rods | bronze |
| Motor Max L/Min | 95 |
| Motor Max GPM | 25 |
| Motor Max PSI | 3770 |
| Motor Max Bar | 260 |
| Motor Inlet (in) | UNF-12 |
| Motor Outlet (in) | UNF-12 |
| Flange | F55 |
| Max L/Min | 151.4 |
| MaxLMin | 151.4 |
| MMaxGPM | 25 |
| MMLMin | 95 |
| MMaxPSI | 3770 |
