CR15-1000

Description

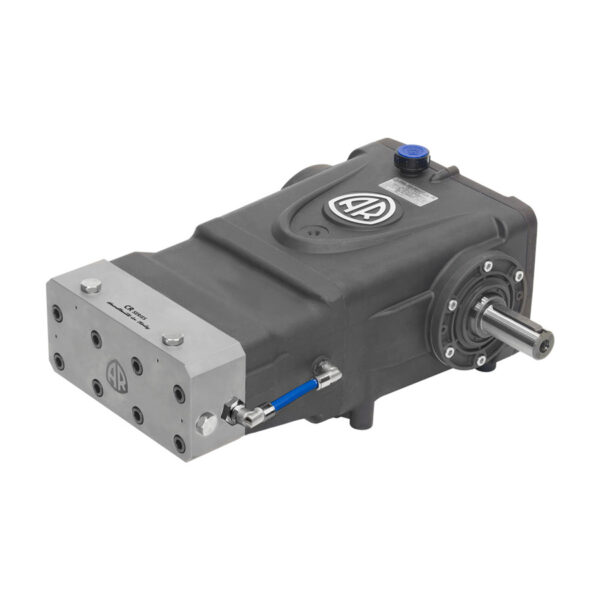

The Annovi Reverberi CR15-1000, N version 35 mm Solid shaft triplex pump is ready for direct mounting. This pump is manufactured with a stainless steel pump head suitable for a wide range of conditions. The CR15-1000 can produce up to 15,000 Max PSI, 4 Max GPM, and is designed to operate at 1000 RPM. Constructed with frictionless bronze connecting rods and ceramic pistons, the CR15-1000 weighs 136 lbs and delivers the performance you demand.

For More Information

Find a Service Dealer
Or Call
(763) 398-2008
Additional Information
Related Products
Accessories

Additional information

Max GPM

4

Max Bar

1000

Max PSI

15000

Power EBHP

41.1

Max RPM

1000

Weight (lbs)

136

Bore Diameter (mm)

14

Stroke mm

35

CSID Stamp

4

Inlet (in)

1-1/2" F

Outlet (in)

1" F

Capacity (oz)

137

Max Temp

140° F

Pump Orientation

Horizontal

Shaft Type

Solid

Shaft Version

N, Natural

Shaft Diameter

35 mm

Series

418 (CR)

Head Material

stainless steel

O-Ring

viton

Max L/Min

15
